6389. Strahler order



In geology, a river system can be represent as a direct graph. Each river segment is an edge; with the edge pointing the same way the waters flows. Nodes are either the source of a river segment (for example, a lake or spring), where rivers segments merge of diverge, or the mouth of the river.

The Strahler order of a river system is computed as follows.

·        The order of each source node is 1.

·        For every other node, let i be the highest order of all its upstream nodes. If just one upstream node has order i, then this node also has order i. If two or more upstream nodes have order i, then this node has order i + 1.

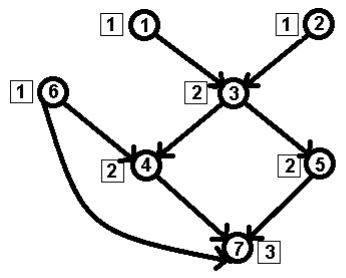

The order of the entire river system is the order of the mouth node. In this problem, the river system will have just one mouth. In the picture above, The Strahler order is three (3).

The number in a box is the order. The number in a circle is the node number.

You must write a program to determine the order of a given river system.

The actual river with the highest order is the Amazon, with order 12. The highest in the U.S. is the Mississippi, width order 10.



Input. The first line contains the number t (1 ≤ t ≤ 1000) of data sets that follow. Each data set should be processed independently.

Each data set consists of multiple lines. The first line of each data set contains three positive integers k, m and p (2 ≤ m ≤ 1000). k is the data set number. m is the number of nodes in the graph and p is the number of edges. The first line is followed by p lines, each describing an edge of the graph. The line will contain two positive integers a and b, indicating that water flows from node a to node b (1 ≤ a, b ≤ m). Node m is the mouth of the river. It has no outgoing edges.



Output. For each data set there is a single line of output. The line consists o the data set number, a single space and the order of the river system.



Sample input

Sample output

1

1 7 8

1 3

2 3

6 4

3 4

3 5

6 7

5 7

4 7

1 3





SOLUTION

graphs – depth first search



Algorithm analysis

Construct a directed graph with reverse edges. The mouth of the original graph will be the source of the constructed one, and from it we’ll run the depth first search. In the process of searching, we recompute the Strahler order order[v] for each vertex v as described in the problem statement.

Consider the vertex v. Let to1, to2, …, tok be its sons. We need to know the greatest Strahler order among the sons, as well as the number of times it occurs among them. Let the structure map<int,int> mp; stores the pairs (order, cnt) – the Shtraler order and the number of times it occurs among the sons.

For example, vertex 7 has three sons:

·        vertex 6 with Strahler order 1;

·        vertex 4 with Strahler order 2;

·        vertex 5 with Strahler order 2;

Vertex 7 among its sons has:

·        one vertex with Strahler order 1, so mp[1] = 1;

·        two vertices with Strahler order 2, so mp[2] = 2;



Find the maximum Strahler order among the sons of the vertex v.

·        if it occurs only in one son to, set order[v] = order[to];

·        if it occurs in more that one son, set order[v] = order[to] + 1;



For the vertex 7 the maximum Strahler order is 2, it is achieved at two vertices: 4 and 5. So order[7] = order[4] + 1 = 2 + 1 = 3.



Algorithm realization

The reverse graph is constructed in the adjacency list g. In order[i] we’ll compute the Strahler order for the i-th vertex.



vector<vector<int> > g;

vector<int> order;



Function dfs runs depth first search from the vertex v and returnes the Strahler order for the vertex v.



int dfs(int v)

{



If the Strahler order is already computed for the vertex v, return it.



  if (order[v] > 0) return order[v];



Iterate over the sons to of the vertex v. We must find the greatest Strahler order among the sons, as well as the number of times it occurs among them. In the structure mp, we store the pairs (order, cnt) – the Strahler order and the number of times it occurs among the sons to.



  int suns = 0, mx = 0;

  map<int,int> mp;

  for(int i = 0; i < g[v].size(); i++)

  {

    int to = g[v][i];

    mp[dfs(to)]++;

  }



If vertex v (v is a leaf) has no sons, then its Strahler order is 1.



  if (mp.empty())

    order[v] = 1;

  else

  {



Set the iterator iter to the pair with the maximum Strahler order.



    map<int,int>::iterator iter = mp.end();

    iter--;



If the maximum order is achieved at only one son, then the order of v equals to the order of that son.



    if ((*iter).second == 1)

      order[v] = (*iter).first;

    else





Otherwise, the order of v equals to the order of this son, increased by 1.



      order[v] = (*iter).first + 1;

  }

  return order[v];

}



The main part of the program. Read the input data. Construct a reverse graph. For each original edge u → v, add an edge v → u to our graph.



scanf("%d", &tests);

for(i = 1; i <= tests; i++)

{

  scanf("%d %d %d",&k,&m,&p);

  g.clear(); g.resize(m + 1);

  order.clear(); order.resize(m + 1);

  for(j = 1; j <= p; j++)

  {

    scanf("%d %d",&u,&v);

    g[v].push_back(u);

  }



Run the depth first search from the mouth of the river – the vertex m and print its Strahler order with the test number.



  res = dfs(m);

  printf("%d %d\n",i,res);

}
